Fluid Admitted: Air, Vaccum, Water(no freezing)

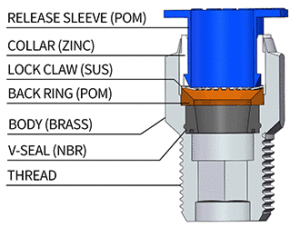

Body Material: Nickel Plated Brass & PBT Plastic
Thread Material: Nickle Plated Brass
Seal, O-ring: NBR
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0~60°C | 32~140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC

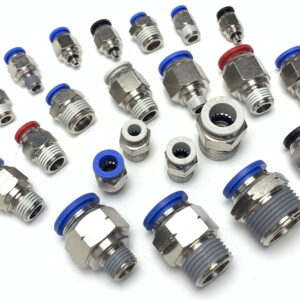

Spec Details Inch Out Diameter to NPT Thread PC Male Connector PC 1/8-U10 PC 3/16-N01 PC 1/4-N03 PC 3/8-N02 PC 1/8-N01 PC 3/16-N02 PC 1/4-N04 PC 3/8-N03 PC 1/8-N02 PC 3/16-N03 PC 5/16-N01 PC 3/8-N04 PC 5/32-U10 PC 1/4-U10 PC 5/16-N02 PC 1/2-N01 PC 5/32-N01 PC 1/4-N0.5 PC 5/16-N03 PC 1/2-N02 PC 5/32-N02 PC 1/4-N01…
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass & PBT Plastic
Thread Material: Nickle Plated Brass
Seal, O-ring: NBR
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0~60°C | 32~140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC
PL Male Elbow Inch Out Diameter to NPT Thread PL Male Elbow PL 1/8-U10 PL 3/16-N01 PL 1/4-N03 PL 3/8-N02 PL 1/8-N01 PL 3/16-N02 PL 1/4-N04 PL 3/8-N03 PL 1/8-N02 PL 3/16-N03 PL 5/16-N01 PL 3/8-N04 PL 5/32-U10 PL 1/4-U10 PL 5/16-N02 PL 1/2-N01 PL 5/32-N01 PL 1/4-N0.5 PL 5/16-N03 PL 1/2-N02 PL 5/32-N02 PL…
Inch Size Specification PP Plug PP 1/8 PP 5/32 PP 3/16 PP 1/4 PP 5/16 PP 3/8 PP 1/2 Mertic Size Spedification PP Plug PP 03 PP 04 PP 06 PP 08 PP 10 PP 12 PP 14 PP 16

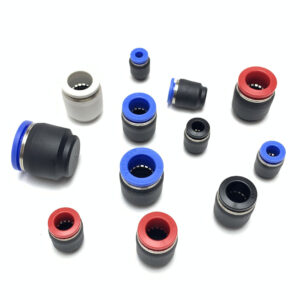

PPF Tube Cap OEM: Logo Customization Sleeve Color:black/blue/red/white Body Color:black/white PPF Tube Cap Metric Out Diameter PPF 04 PPF 06 PPF 08 PPF 10 PPF 12 PPF 16 – PPF Tube Cap Inch Out Diameter PPF 1/8 PPF 5/32 PPF 3/16 PPF 1/4 PPF 5/16 PPF 3/8 PPF 1/2
Vitae purus faucibus ornare suspendisse sed. Sapien et ligula ullamcorper malesuada proin libero nunc consequat.

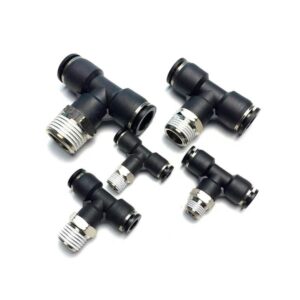

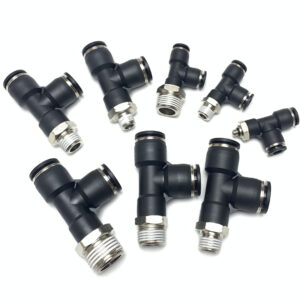

PT Male Tee More Specification OEM: Logo Customization Sleeve Color:black/blue/red/white Body Color:black/white Metric Out Diameter to PT Thread PT Male Tee PT 04-M5 PT 06-02 PT 10-01 PT 12-04 PT 04-01 PT 06-03 PT 10-02 PT 12-06 PT 04-02 PT 06-04 PT 10-03 PT 04-03 PT 08-01 PT 10-04 PT 06-M5 PT 08-02 PT 12-01…
Vitae purus faucibus ornare suspendisse sed. Sapien et ligula ullamcorper malesuada proin libero nunc consequat.

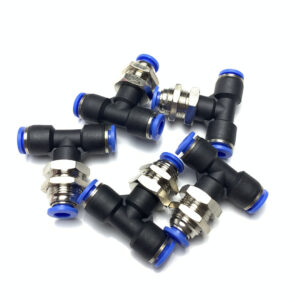

PTM Union Bulkhead Tee More Specification OEM: Logo Customization Sleeve Color:black/blue/red/white Body Color:black/white PTM Union Bulkeadh Tee Metric Inch PTM 04 PTM 1/8 PTM 06 PTM 5/32 PTM 08 PTM 1/4 PTM 10 PTM 5/16 PTM 12 PTM 3/8 PTM 16 PTM 1/2
